Fuel Hose and Connectors
SAE J2044 Fuel Hose Connectors

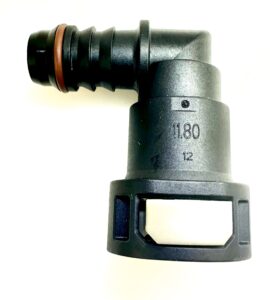

Manufactured from Black PA12 with Viton O-Ring seals to SAE J2044 standards. Operating Temperature range -40°C up to +115°C. Safe for use with any Fuel Type.
| Part | Description | Diam. | I.D. | Angle |
|---|---|---|---|---|

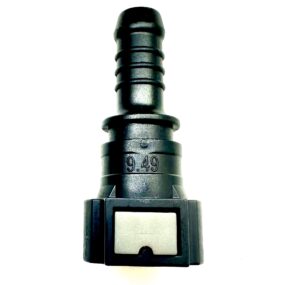

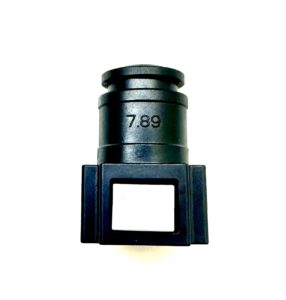

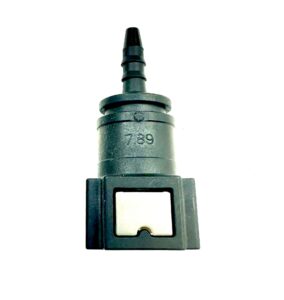

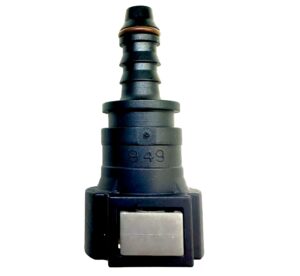

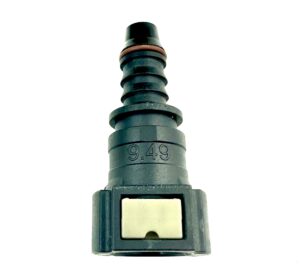

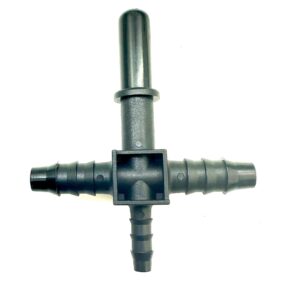

| 14737 | SAE J2044 Quick Connect | Ø7.89 | ID6, ID6, ID4 | 4-Way |
| 14738 | SAE J2044 Quick Connect | Ø7.89 | ID6, ID6 | 3-Way |

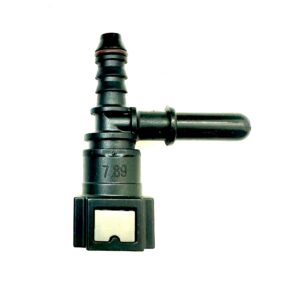

| 14739 | SAE J2044 Quick Connect | Ø7.89 | ID6, ID6 | T-piece 90° |
| 14740 | SAE J2044 Quick Connect | Ø7.89 | ID6 | 135° |
| 14741 | SAE J2044 Quick Connect | Ø7.89 | ID5 | 135° |
| 14742 | SAE J2044 Quick Connect | Ø7.89 | ID3 | 180° |

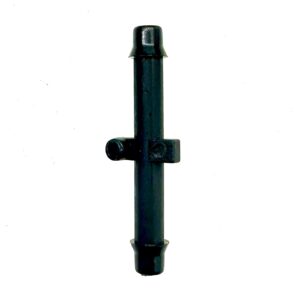

| 14743 | SAE J2044 Quick Connect | Ø7.89 | ID4 | Male to Male |

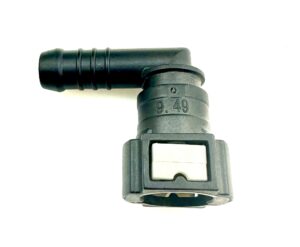

| 14744 | SAE J2044 Quick Connect | Ø7.89 | ID5 | 90° |
| 14745 | SAE J2044 Quick Connect | Ø7.89 | ID5 | 180° |
| 14746 | SAE J2044 Quick Connect | Ø7.89 | ID8 | Male to Male |
| 14747 | SAE J2044 Quick Connect | Ø7.89 | ID6 | Male to Male |
| 14748 | SAE J2044 Quick Connect | Ø7.89 | ID6 | T-piece 180° |
| 14749 | SAE J2044 Quick Connect | Ø7.89 | Blank | Blank |
| 14750 | SAE J2044 Quick Connect | Ø7.89 | ID8 | 180° |
| 14751 | SAE J2044 Quick Connect | Ø7.89 | ID8 | 90° |
| 14752 | SAE J2044 Quick Connect | Ø7.89 | ID6 | 180° |

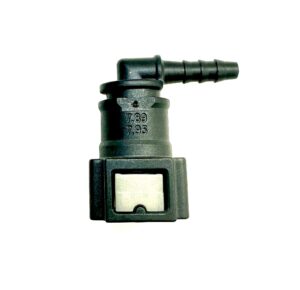

| 14753 | SAE J2044 Quick Connect | Ø7.89 | ID6 | 90° |
| 14754 | SAE J2044 Quick Connect | Ø7.89 | ID4 | 180° |
| 14755 | SAE J2044 Quick Connect | Ø7.89 | ID4 | 90° |

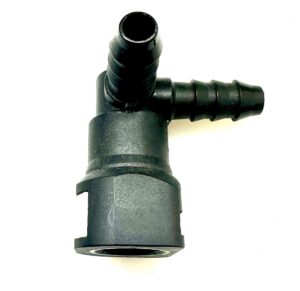

| 14756 | SAE J2044 Quick Connect | Ø7.89 | ID6 | 3-Way Male SAE on Branch |
| 14757 | SAE J2044 Quick Connect | Ø7.89 | ID6 | 3-Way Male SAE on Run |
| 14758 | SAE J2044 Quick Connect | Ø7.89 | ID6, ID6 | 3-Way Barb on Run and Branch |

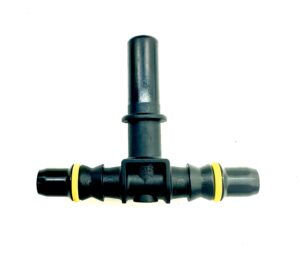

| 14759 | SAE J2044 Quick Connect | Ø7.89 | ID6 | 3-Way T-piece |
| 14760 | SAE J2044 Quick Connect | Ø9.49 | ID8 | 180° |
| 14761 | SAE J2044 Quick Connect | Ø9.49 | ID8 | 90° |
| 14762 | SAE J2044 Quick Connect | Ø9.49 | ID6 | 180° |
| 14763 | SAE J2044 Quick Connect | Ø9.49 | ID6 | 90° |

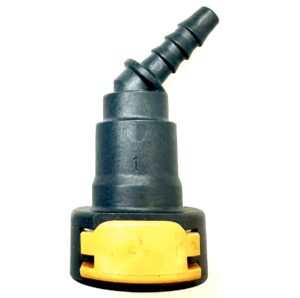

| 14764 | SAE J2044 Quick Connect | Ø9.49 | ID6 | 135° |
| 14765 | SAE J2044 Quick Connect | Ø9.49 | ID8 | 135° |
| 14766 | SAE J2044 Quick Connect | Ø9.49 | Blank | Blank |

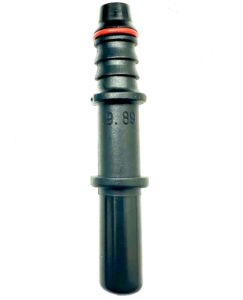

| 14767 | SAE J2044 Quick Connect | Ø9.49 | ID8 | Male to Male |
| 14768 | SAE J2044 Quick Connect | Ø9.89 | ID8 | Male to Male |
| 14770 | SAE J2044 Quick Connect | Ø9.89 | ID8 | 180° |
| 14771 | SAE J2044 Quick Connect | Ø9.89 | ID8 | 90° |

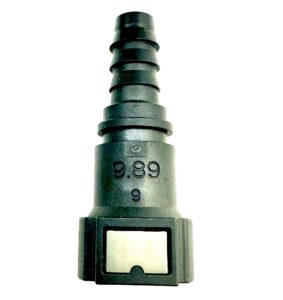

| 14780 | SAE J2044 Quick Connect | Ø9.89 | ID9 | 180° |
| 14781 | SAE J2044 Quick Connect | Ø9.89 | ID8, ID8 | T-piece 90° |
| 14782 | SAE J2044 Quick Connect | Ø9.89 | Blank | Blank |
| 14789 | SAE J2044 Quick Connect | Ø9.49 | ID11 | 180° |
| 14790 | SAE J2044 Quick Connect | Ø9.49 | ID9.5 | 180° |
| 14791 | SAE J2044 Quick Connect | Ø9.49 | ID9.5 | 90° |
| 14792 | SAE J2044 Quick Connect | Ø9.49 | ID12 | 180° |
| 14793 | SAE J2044 Quick Connect | Ø9.49 | ID12 | 90° |
| 14794 | SAE J2044 Quick Connect | Ø11.8 | ID12 | 90° |
| 14795 | SAE J2044 Quick Connect | Ø11.8 | ID12 | 180° |
| 14796 | SAE J2044 Quick Connect | Ø12.6 | ID12 | 180° |
| 14797 | SAE J2044 Quick Connect | Ø12.6 | ID12 | 90° |
| 14798 | SAE J2044 Quick Connect | Ø18.9 | ID16.5 | 90° |
| 14799 | SAE J2044 Quick Connect | Ø18 | ID15 | 180° |
Can be connected to various different hose types and sizes using XRP Crimp Collar or Norma Cobra Clip
Fuel Hose
Convoluted Nylon In-Tank Fuel Hose
Manufactured from transparent Nylon PA12.

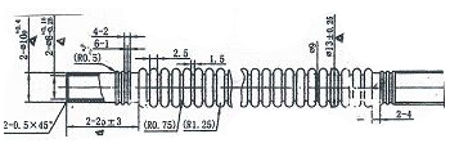

Hose has circular corrugation, concentrically arranged around the longitudinal axis with moulded smooth sections. Fully flexible in the Convoluted section, high mechanical strength and minimum wall thickness, smooth cuff matches accessories, available in different inside diameters to match your flow requirements, smooth section provides high strength, optimum wall thickness distribution.
| Part Code | Description |
|---|---|
| 14501 | Convoluted In-Tank Fuel Hose, 152mm Length, 8mm ID |
| 14502 | Convoluted In-Tank Fuel Hose, 210mm Length, 8mm ID |
| 14503 | Convoluted In-Tank Fuel Hose, 280mm Length, 8mm & 9.5mm ID |
| 14504 | Convoluted In-Tank Fuel Hose, 250mm Length, 8mm ID |
| 14505 | Convoluted In-Tank Fuel Hose, 500mm Length, 8mm ID |
| 14506 | Convoluted In-Tank Fuel Hose, 750mm Length, 8mm ID |
| 14507 | Convoluted In-Tank Fuel Hose, 1000mm Length, 8mm ID |
| 14508 | Convoluted In-Tank Fuel Hose, 250mm Length, 9mm ID |
| 14509 | Convoluted In-Tank Fuel Hose, 500mm Length, 9mm ID |
Fuel Hose Assemblies
Pre-assembled hose with SAE J2044 Quick Connect attached to OEM specification on one end. Burst Tested to 20 bar, 10 bar operational pressure.
| Part Code | Description |
|---|---|
| 14600 | Convoluted In-Tank Fuel Hose, Ø7.89 (5/16”) 180° SAE J2044 Quick Connect, 500mm Length, 8mm ID |
| 14601 | Convoluted In-Tank Fuel Hose, Ø7.89 (5/16”) 90° SAE J2044 Quick Connect, 500mm Length, 8mm ID |
| 14602 | Convoluted In-Tank Fuel Hose, Ø7.89 (5/16”) 180° SAE J2044 Quick Connect, 750mm Length, 8mm ID |
| 14603 | Convoluted In-Tank Fuel Hose, Ø7.89 (5/16”) 90° SAE J2044 Quick Connect, 750mm Length, 8mm ID |
| 14630 | Convoluted In-Tank Fuel Hose, Ø9.49 (3/8”) 180° SAE J2044 Quick Connect, 500mm Length, 8mm ID |
| 14631 | Convoluted In-Tank Fuel Hose, Ø9.49 (3/8”) 90° SAE J2044 Quick Connect, 500mm Length, 8mm ID |
| 14632 | Convoluted In-Tank Fuel Hose, Ø9.49 (3/8”) 180° SAE J2044 Quick Connect, 750mm Length, 8mm ID |
| 14633 | Convoluted In-Tank Fuel Hose, Ø9.49 (3/8”) 90° SAE J2044 Quick Connect, 750mm Length, 8mm ID |
| 14634 | Convoluted In-Tank Fuel Hose, Ø9.49 (3/8”) 180° SAE J2044 Quick Connect, 500mm Length, 9mm ID |
| 14635 | Convoluted In-Tank Fuel Hose, Ø9.49 (3/8”) 90° SAE J2044 Quick Connect, 500mm Length, 9mm ID |
