11833 – Pierburg L3LM, 7.50012.50

Product Code: 11833




Name Value
Weight 655 grams
External Materials
Inlet Fitting 15mm OD
Outlet Fitting M10 x 1.00
Impeller Design Helical screw type
Terminal Post M4 Positive/ M5 Negative
Min Voltage Input 6 vdc
Max Voltage Input 16 vdc
Current Draw 11.2a (13.8v dc)

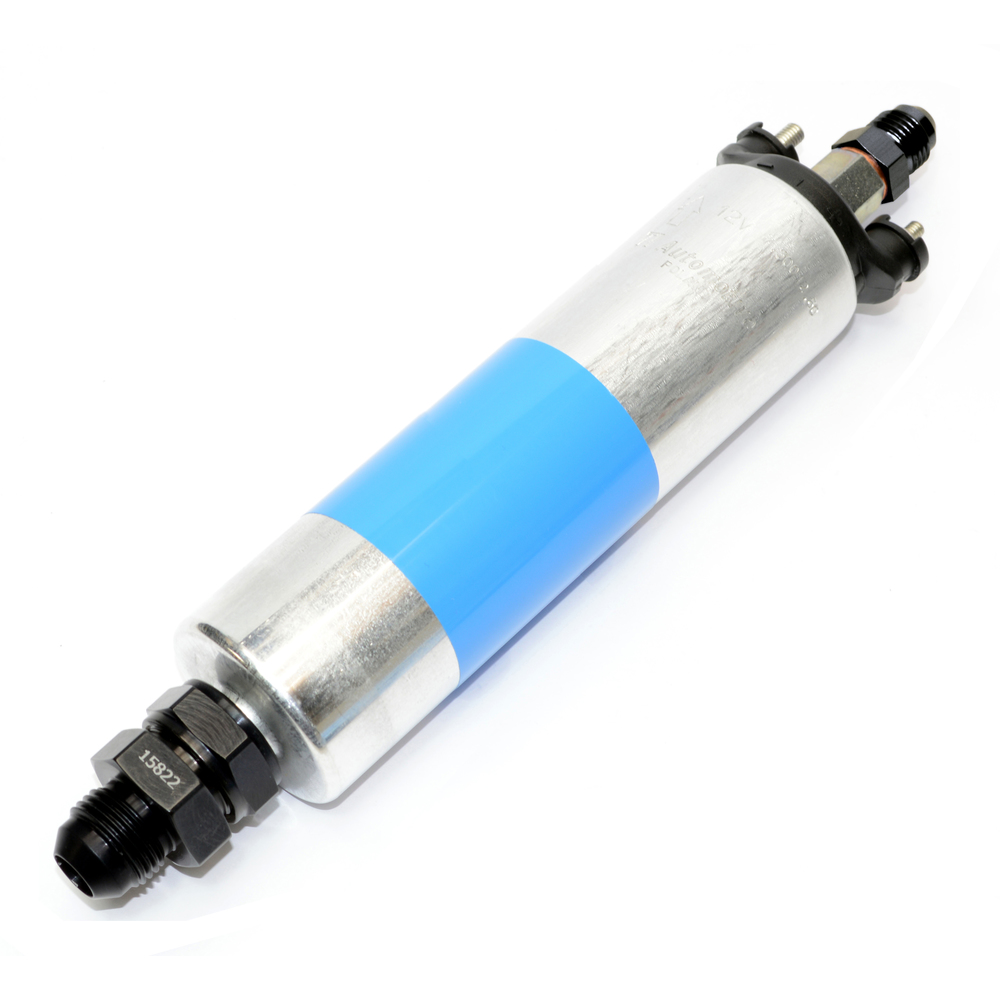

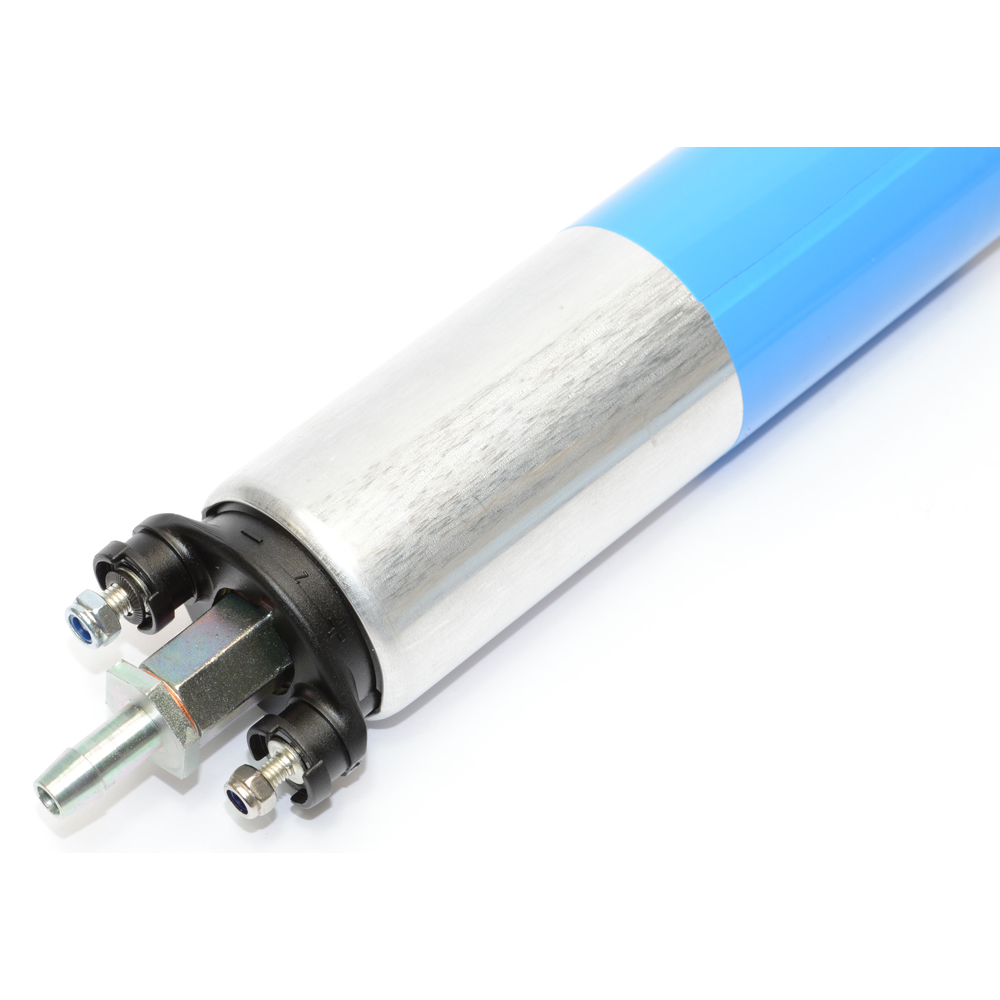

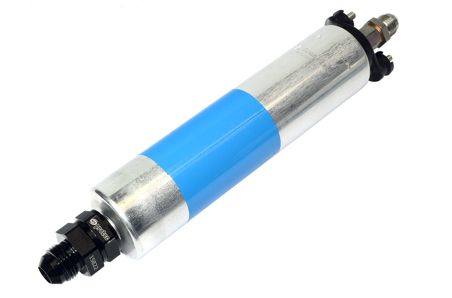

The L3LM is a high performance fuel pump for in line fitting with a 400 ltr/hr maximum flow. It includes an internal check valve and is compatible with all popular fuels including Ethanol up to E85. This fuel pump features a helical screw type impeller which offers quiet running and reliability. (Fittings sold separately)

Application Hints

Ensure fuel is always clean and filtered.

Check filter replace as required.

Compatible with all regular fuels.
