11849 – In Tank High Pressure, 340 series, E-85, Offset Inlet, AN-6 male outlet
Product Code: 11849
|Outlet Fitting||AN6 Male|
|Impeller Design||Regenerative Turbine|

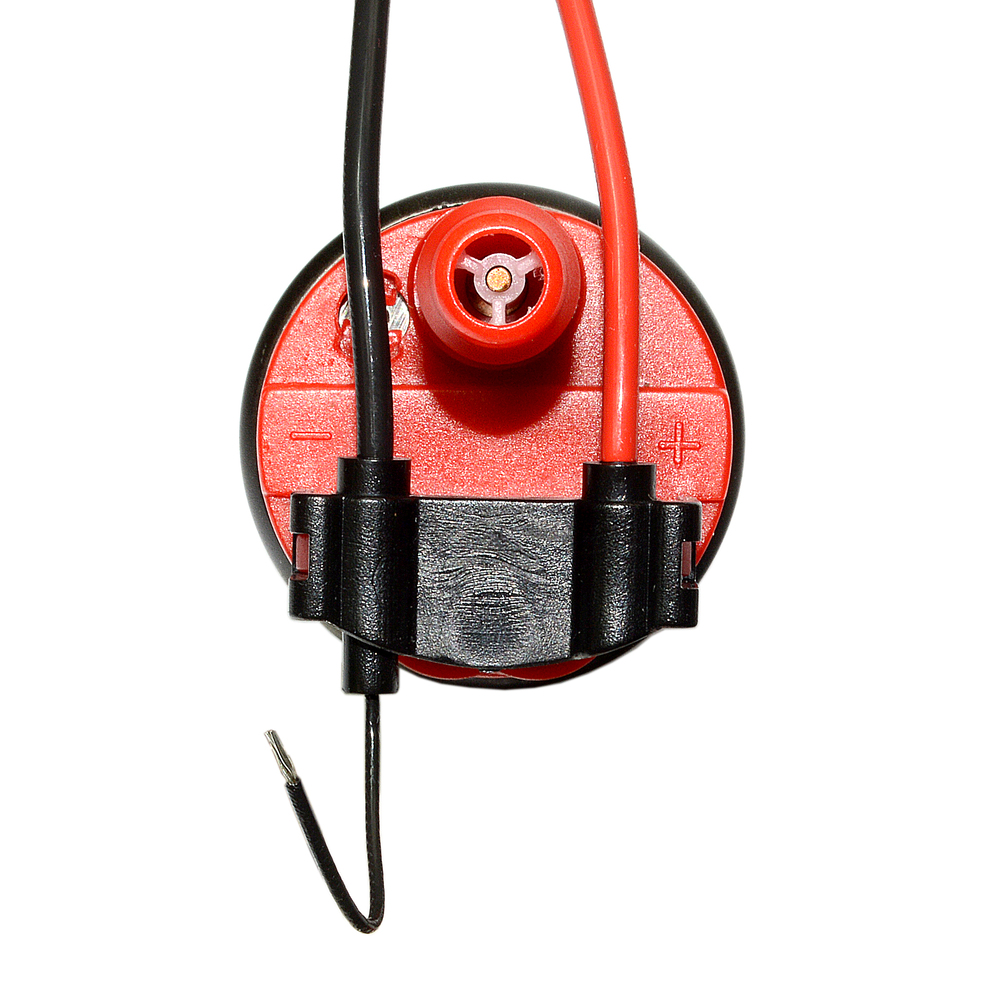

|Terminal Post||E85 Compatible Fly Lead|
|Min Voltage Input||6 vdc|
|Max Voltage Input||18 vdc|
|Current Draw||12 amps (13.8vdc)|

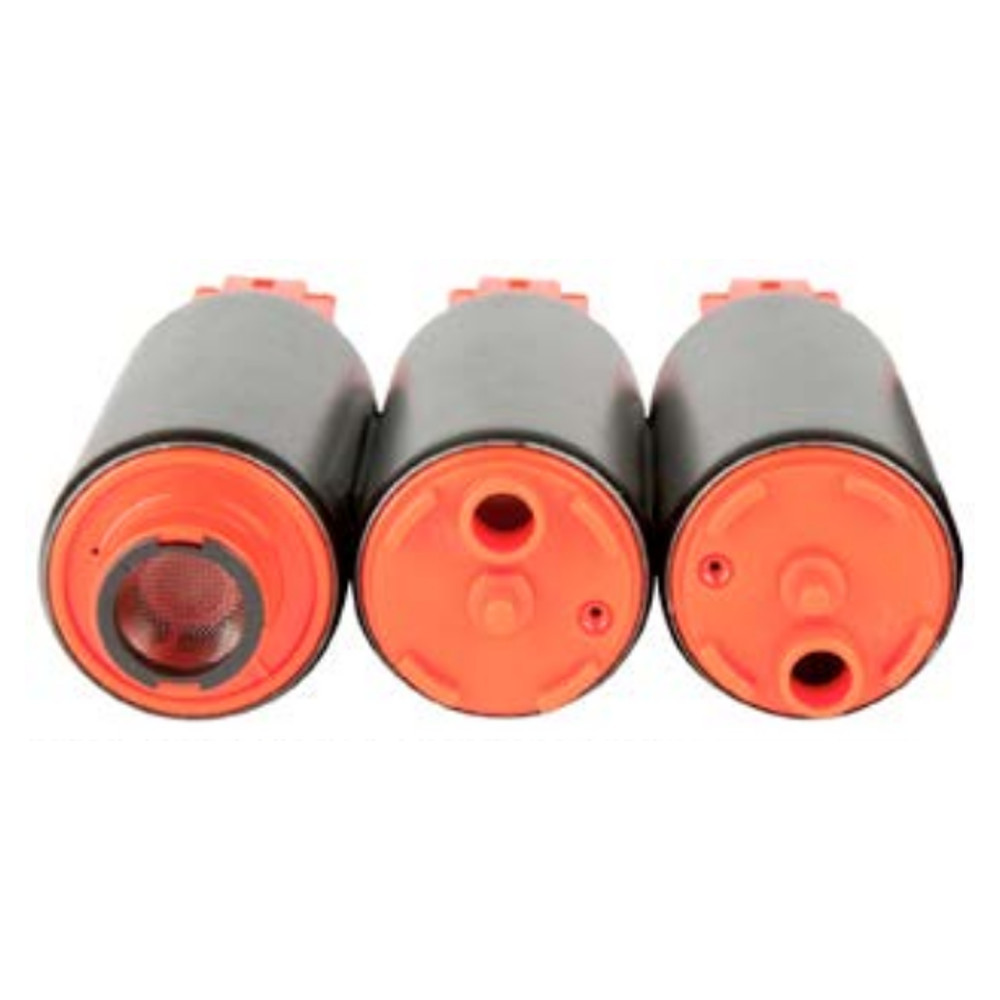

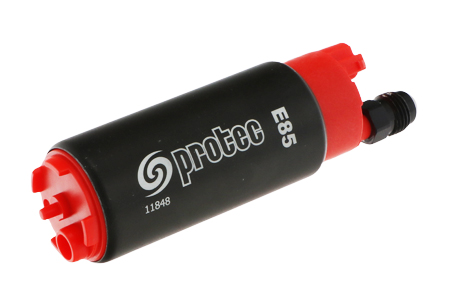

The 340 Fuel Pump is a high-output, in-tank, electric fuel pump that fits most popular EFI applications. The 340 is a compact, lightweight pump that bolts into many existing assemblies.
This pump is ideal for applications requiring more flow while retaining the factory lines and mounting provisions available in the Original Equipment (O.E.) configuration.
Fits most vehicles (See Application List)
Internal Check Valve
Designed for in-tank use only
Compatible with Ethanol Fuels
Can be used in Carburetted or EFI applications
Turbine pump mechanism increases durability and can be used in pulse modulated applications.
Ensure fuel is always clean and filtered.
Check filter replace as required.
Compatible with all regular fuels and E85.
