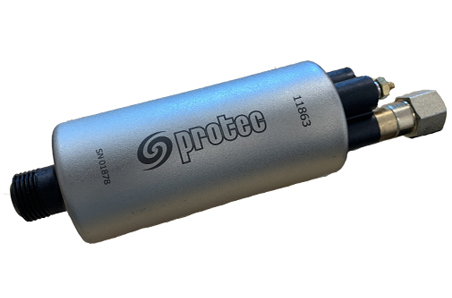

11863 – In-Line Fuel Pump
Product Code: 11863
£78.32
Specification
| Name | Value |
|---|---|
| Flow | 225 ltr/hr @ 5 Bar |
| Weight | 607 grams |
| External Materials | Aluminium |
| Inlet Fitting | 3/4" - 16 UNJF |
| Outlet Fitting | 1/4 NPT female |
| Impeller Design | Screw |
| Terminal Post | M5 |
| Min Voltage Input | 6 vdc |
| Max Voltage Input | 16 vdc |
| Current Draw | 11.1 Amps (13.8vdc) @(43 psi) |
Description
Inline fuel Pump with an 3/4″ – 16 UNJF inlet and 1/4NPT female outlet which can be adapted to become and AN8 male inlet and AN6 outlet. This can be used as an internal and external pump depending on your application.
11863 In-Line Fuel Pump datasheet 101.29 KB
Application Hints
