11924, Brushless Cobra Compact with 9mm Barb Outlet and Siphon Port (kit)

Product Code: 11924

Cost

£464.23

Specification

Name Value
Flow 352 ltr/hr @ 3 bar
Current Draw
Pressure 6 Bar Max Pressure
Inlet Fitting 12mm
Outlet Fitting 9mm Barb/ 6mm Barb
Impeller Design Turbine Pump Mechanism
Weight 326g (.718lbs)

Description

The Brushless Cobra Compact fuel pump has been engineered to provide precise fuel flow for the most demanding applications. It is Suitable for use with Ethanol, Methanol and petrol (gasoline) the Cobra Compact pump is able to deliver fuel at higher pressures while using less amps. The Cobra Compact is also able to offer a brushless system to the customer for a lower price than other brushless pumps in our range. It is also a direct replacement for various OEM fuel systems meaning no need to change any of the OEM fittings and baskets inside the tank.

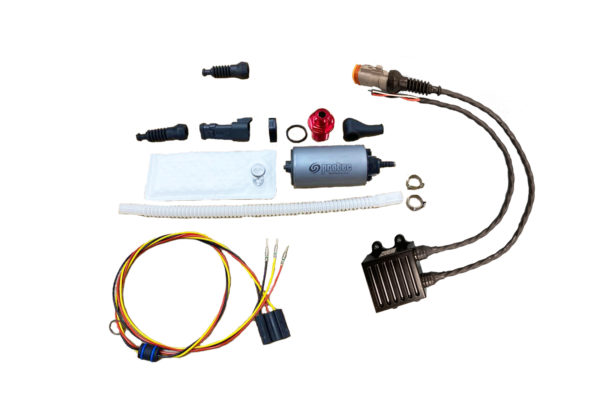

Full kit with Mil-spec hermetic (90047) and brushless controller (1644x) please see part number options for desired controller.



11924 comes with standard on/off controller (16440)

11924-DS comes with Dual speed controller (16441)

11924-PWM comes with PWM controller (16442)



(BRUSHLESS CONTROLLER REQUIRED TO POWER PUMP)

Application Hints

Ensure fuel is always clean and filtered.

Ensure all fittings are tight before use.

Check filter and replace if required.

‘Efficiency is Power, Power is Everything’
