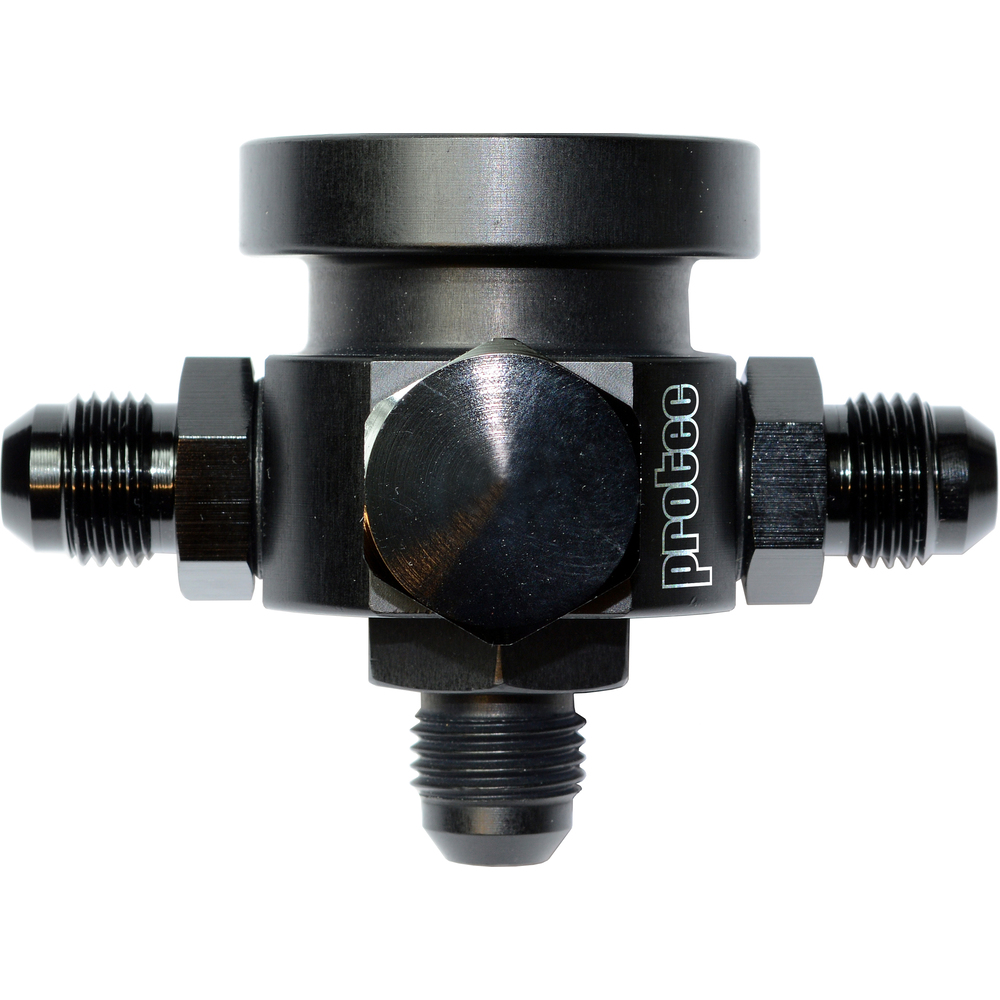

13510 – 4 Way Housing for VAG Type Capsule, Including 5 bar Regulator, Fittings, Bracket, Black

Product Code: 13510




MaterialAluminium, stainless steel

Name Value
Weight 140 grams
Length 70.1mm

All dimensions are approximate. Contact us if you need critical information.

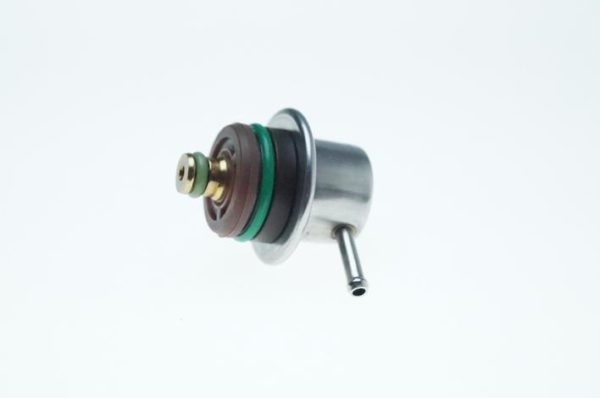

This fuel pressure regulator is a VAG type high flow Motorsport version. It is set at 5 Bar and features push on fitting. It is all housed in an aluminium housing with three AN6 female ports and one AN6 male port. It comes with two AN6 adaptors, one AN6 blanking plug, 36mm Circlip, backing plate, 4 Counter sunk M4 x 5mm bolts and two M6 x 16mm fixing bolts for the plate.

Application Hints

Ensure fittings are clean and free of debris when fitting.

Make sure all fittings are tightened before use.

Ensure fuel is properly filtered.
