13513 – 4 Way Housing for VAG Type Capsule, Including Adjustable 1-6 bar Regulator, Fittings, Bracket, Black
Product Code: 13513
£169.58
Specification
MaterialAluminium, stainless steel
| Name | Value |
|---|---|
| Pressure | 1-6 adjustable |
| Weight | 160 grams (Excluding AN6 Fittings) |
| Length | 86.24mm |
All dimensions are approximate. Contact us if you need critical information.
Description

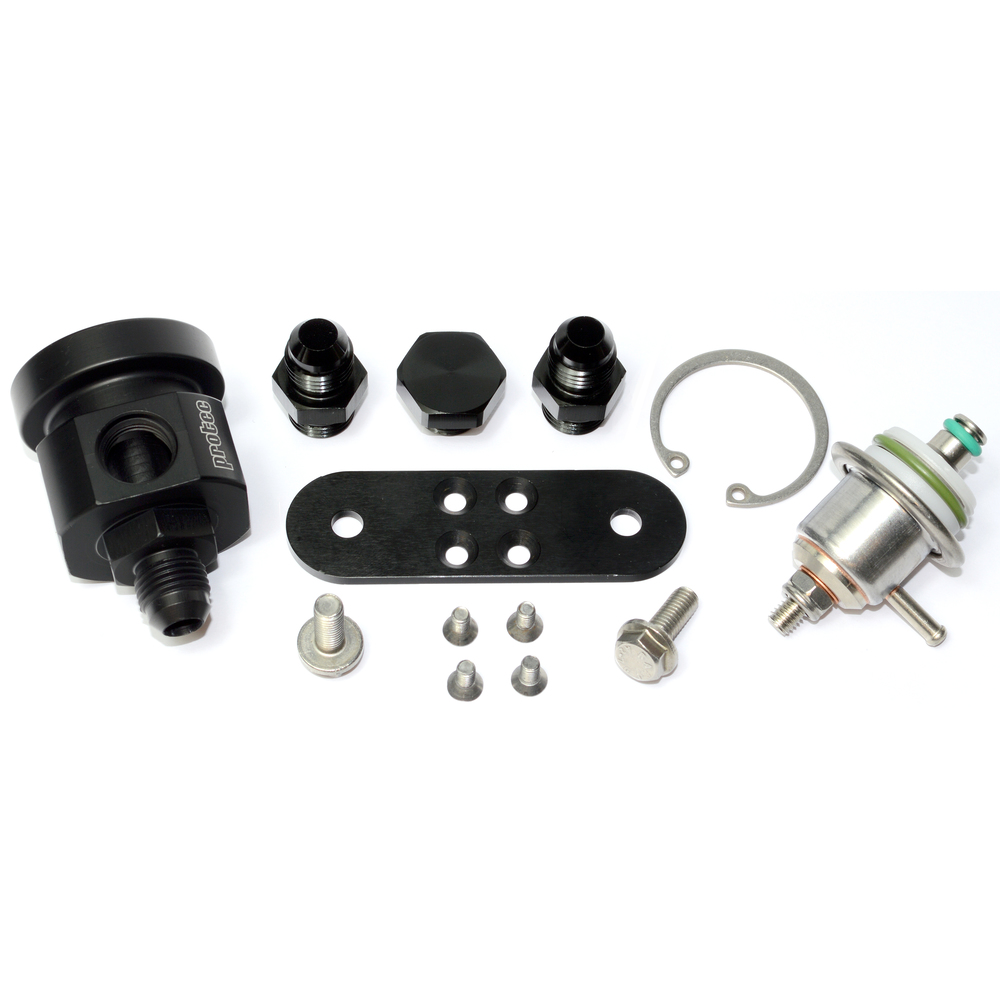

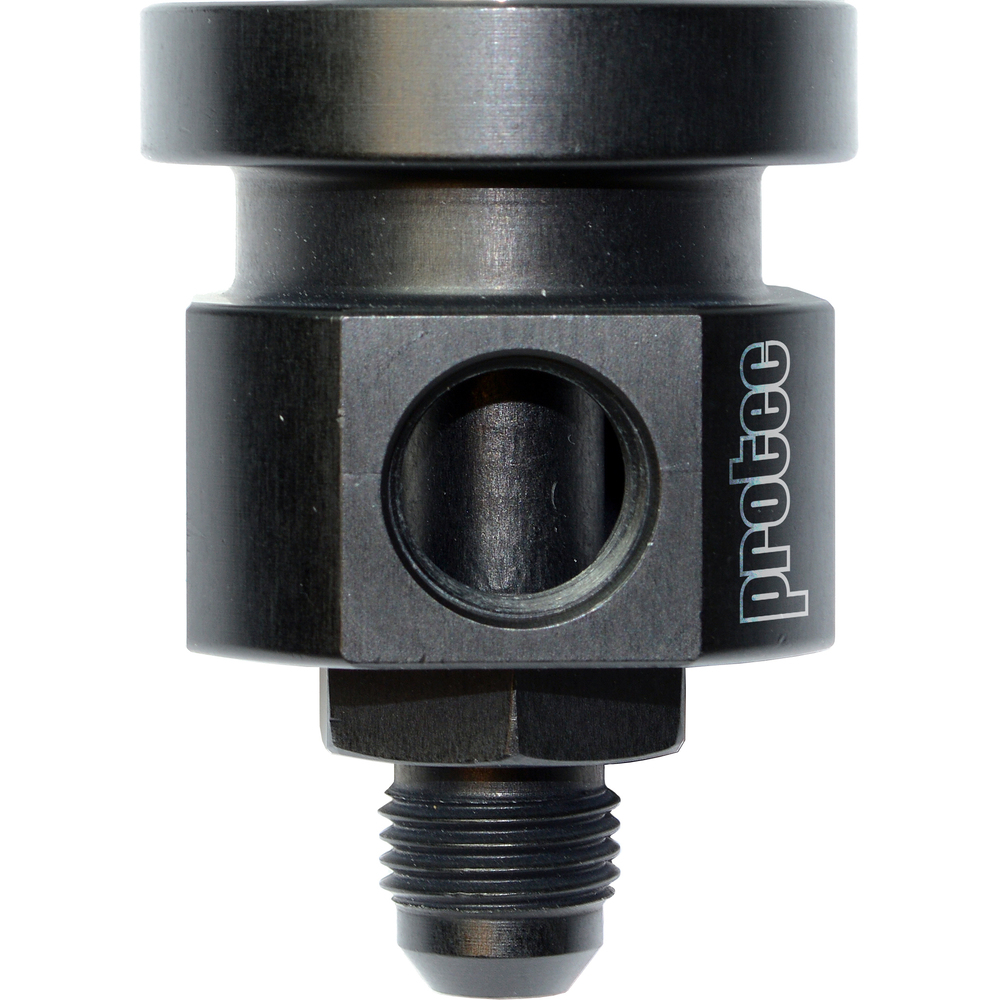

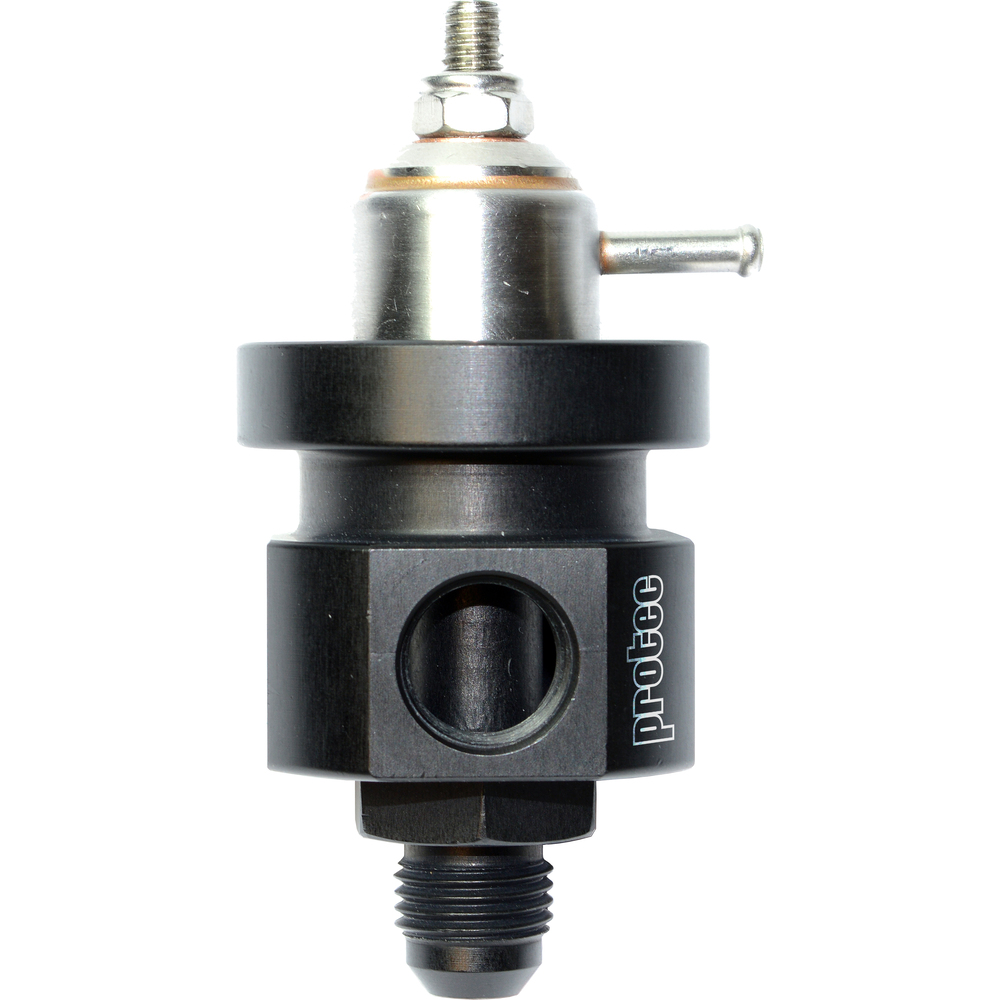

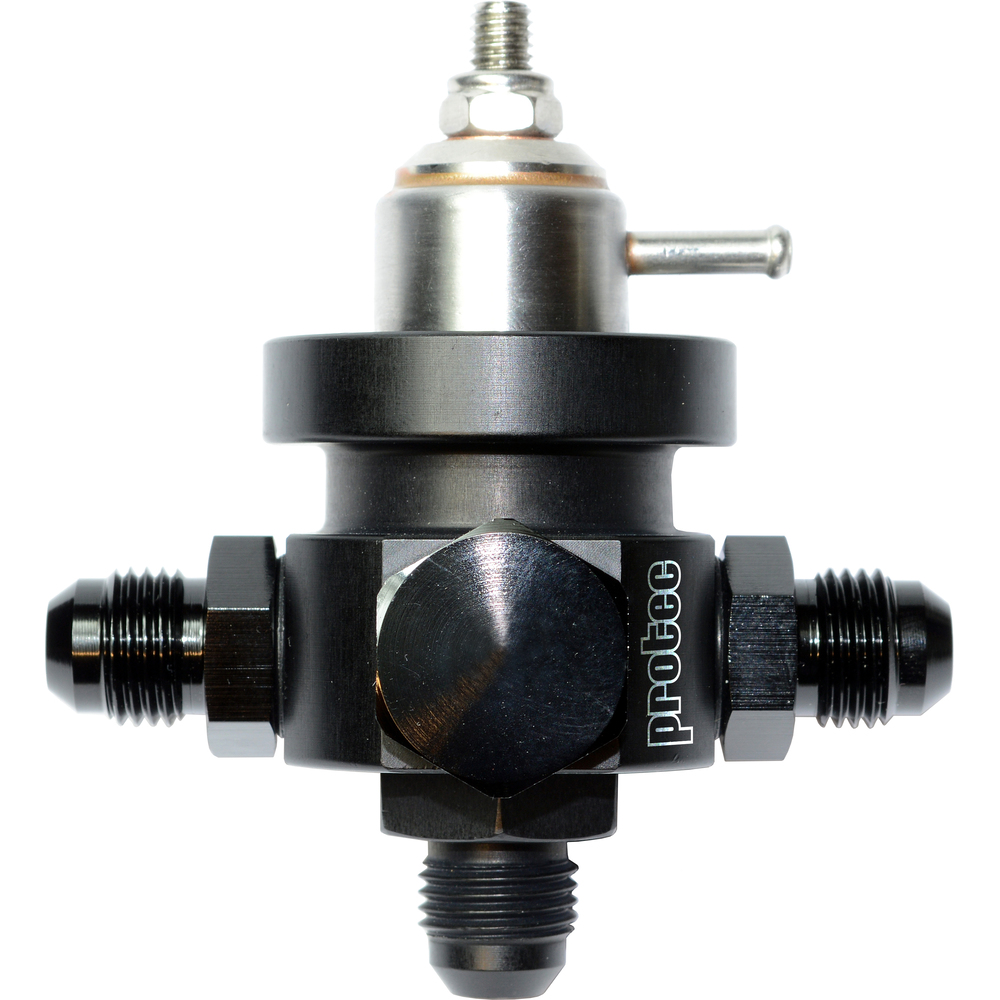

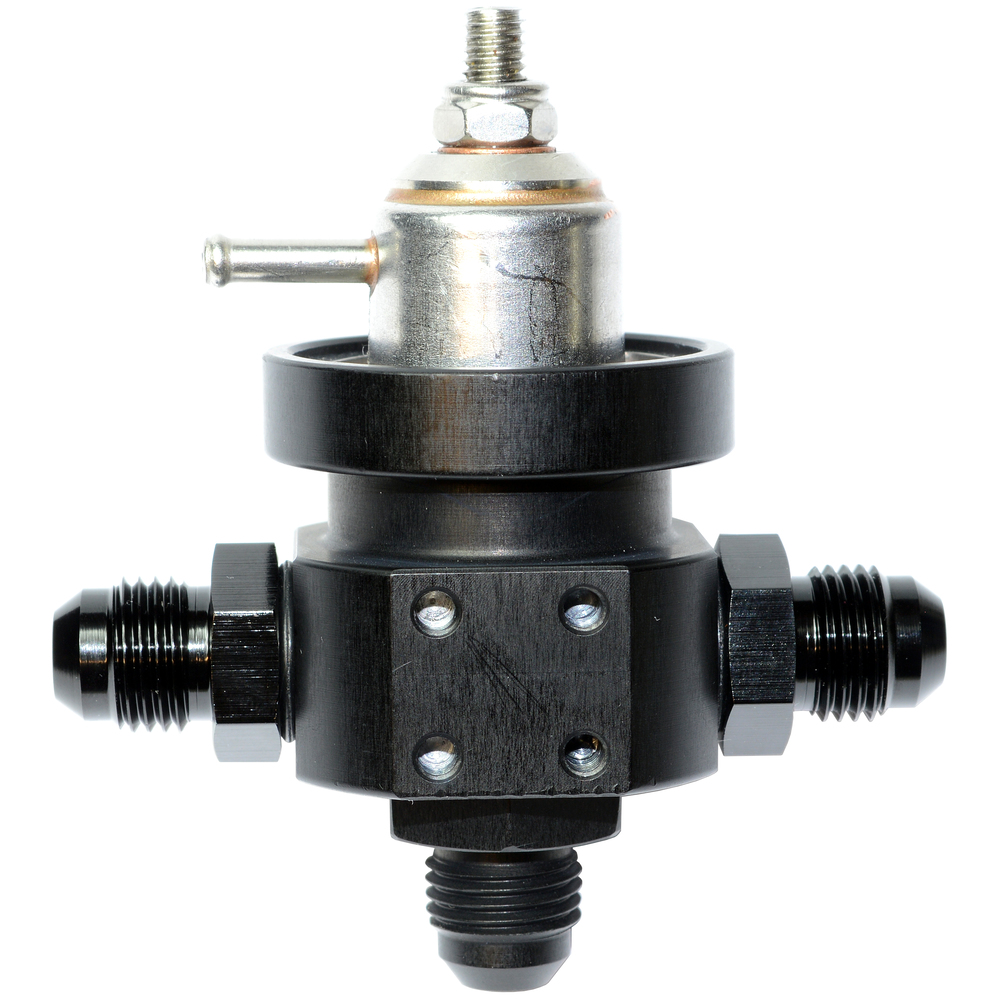

This fuel pressure regulator is a VAG type high flow Motorsport version. It is adjustable between 1-6 Bar and features push on fitting. It is all housed in an aluminium housing with three AN6 female ports and one AN6 male port. It comes with two AN6 adaptors, one AN6 blanking plug, 36mm Circlip, backing plate, 4 Counter sunk M4 x 5mm bolts and two M6 x 16mm fixing bolts for the plate.
13513 Regulator 130.42 KB
Application Hints
Ensure fittings are clean and free of debris when fitting.
Make sure all fittings are tightened before use.
Ensure fuel is properly filtered.
