16441 – Brushless Controller Dual Speed

Product Code: 16441

Cost

£280.77

Specification

Name Value
Flow
Weight
External Materials
Inlet Fitting
Outlet Fitting
Impeller Design

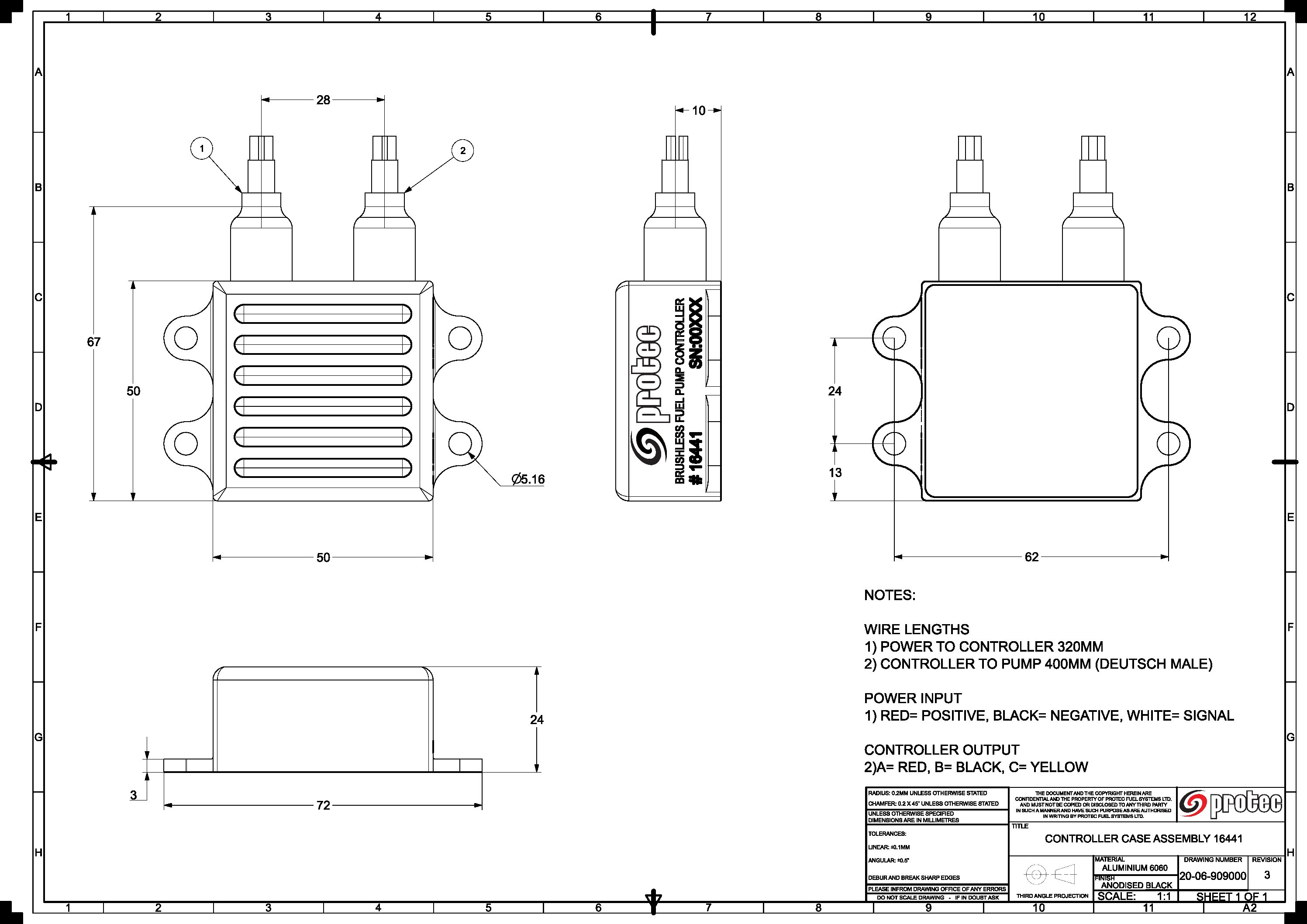

Terminal Post Sealed Fly Lead (see Drawing for Lengths)
Min Voltage Input 8v
Max Voltage Input 16v
Current Draw

Description

This externally mounted Brushless Fuel Pump Controller operates many DC Brushless Fuel Pumps. The 16441 is a Dual Speed controller. This compact system can operate up to 20 Amps and 16 volts. This controller is ONLY compatible with DC Brushless based pumps and is NOT compatible with standard brush style pumps nor DC Brushless Fuel Pumps that have integrated controllers. The Dual speed controller will give you 30% duty cycle when the signal wire is insulated/not used, or 100% duty cycle when the signal wire is switched to ground.



Deutsch DT06-3S fitted to fly lead 2 with mating connector also supplied.

Application Hints

Ensure fuel is always clean and filtered.

Ensure all fittings are tight before use.

Check filter and replace if required.
