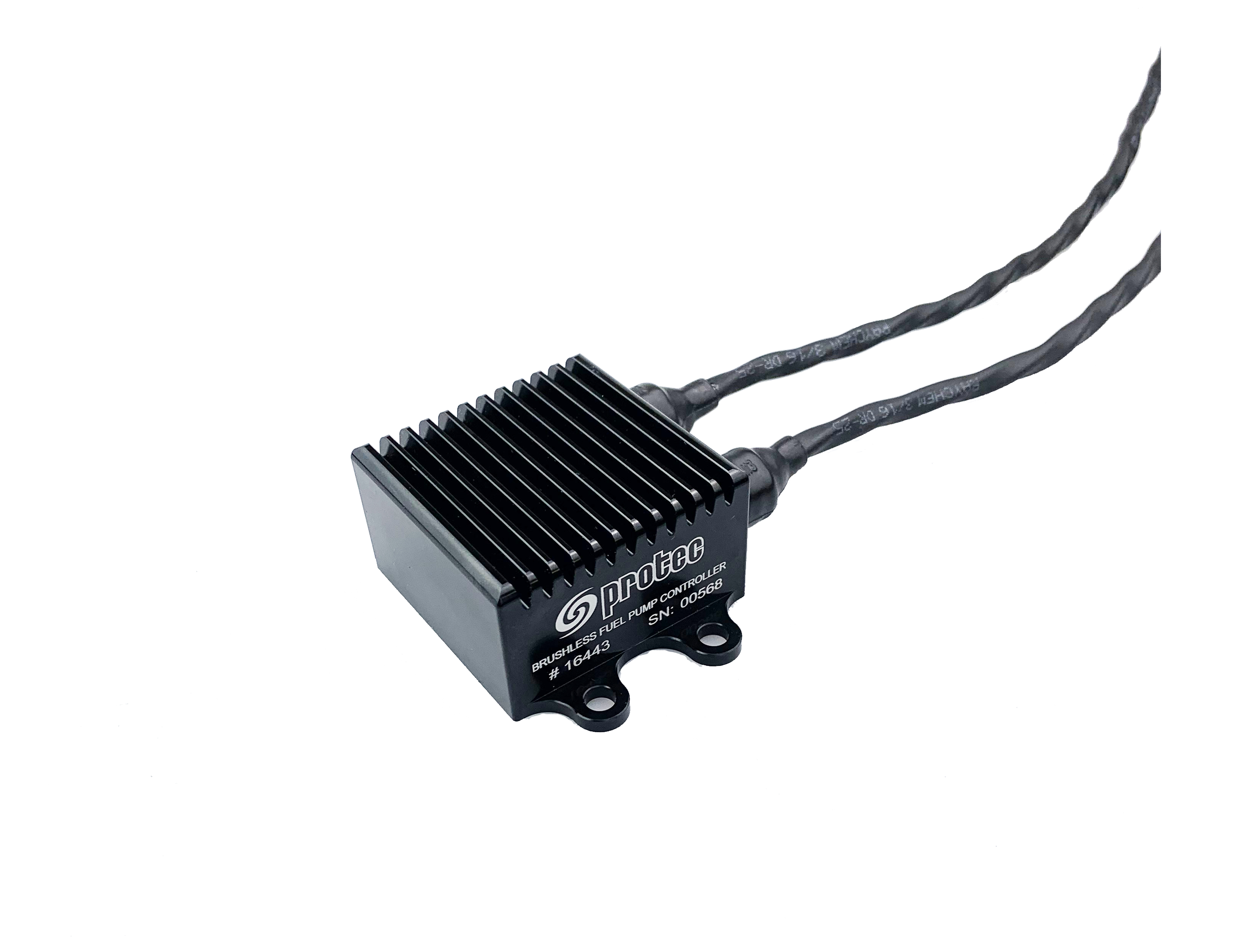

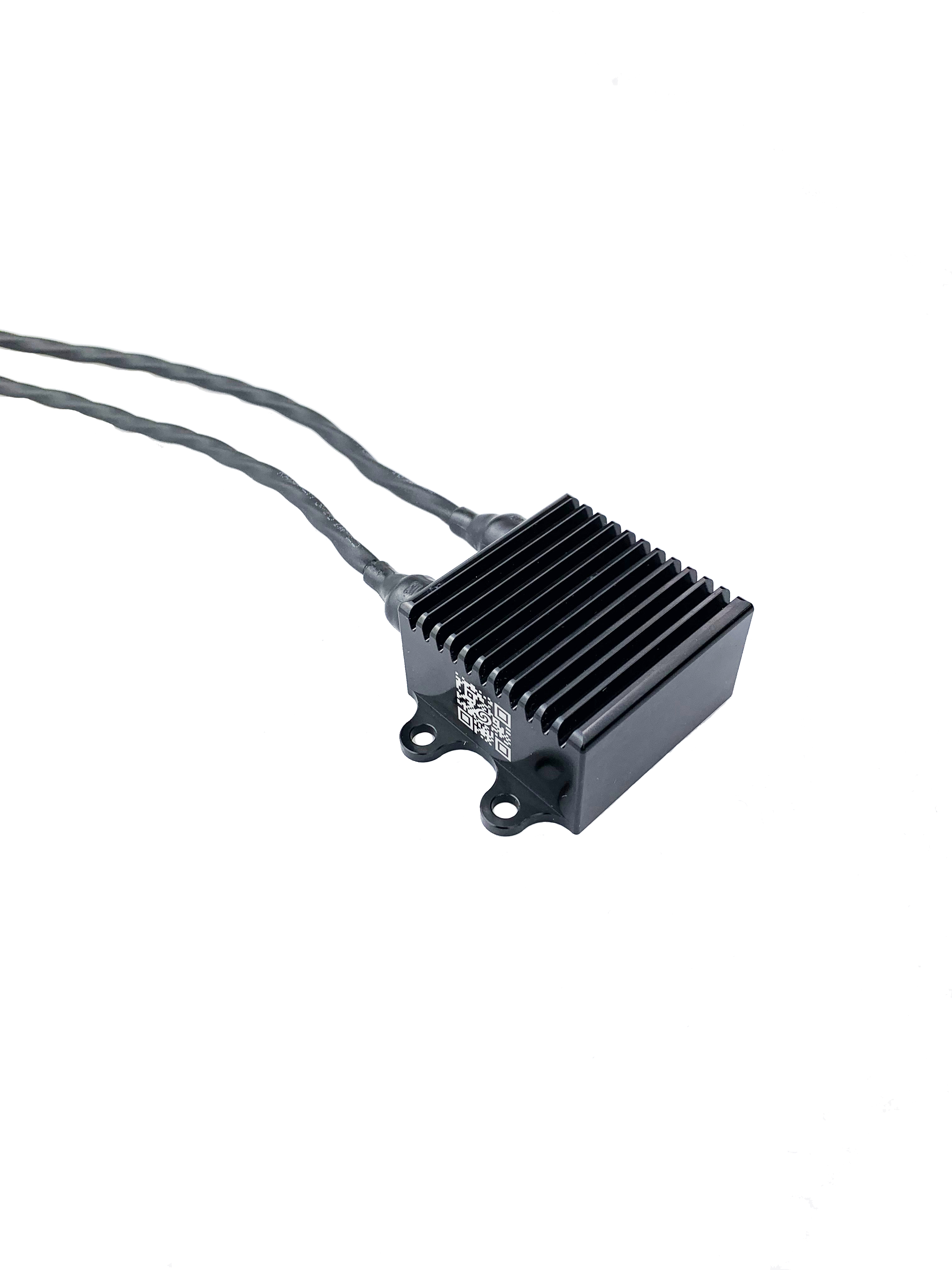

16443 – Brushless Controller With Extra Finning
Product Code: 16443

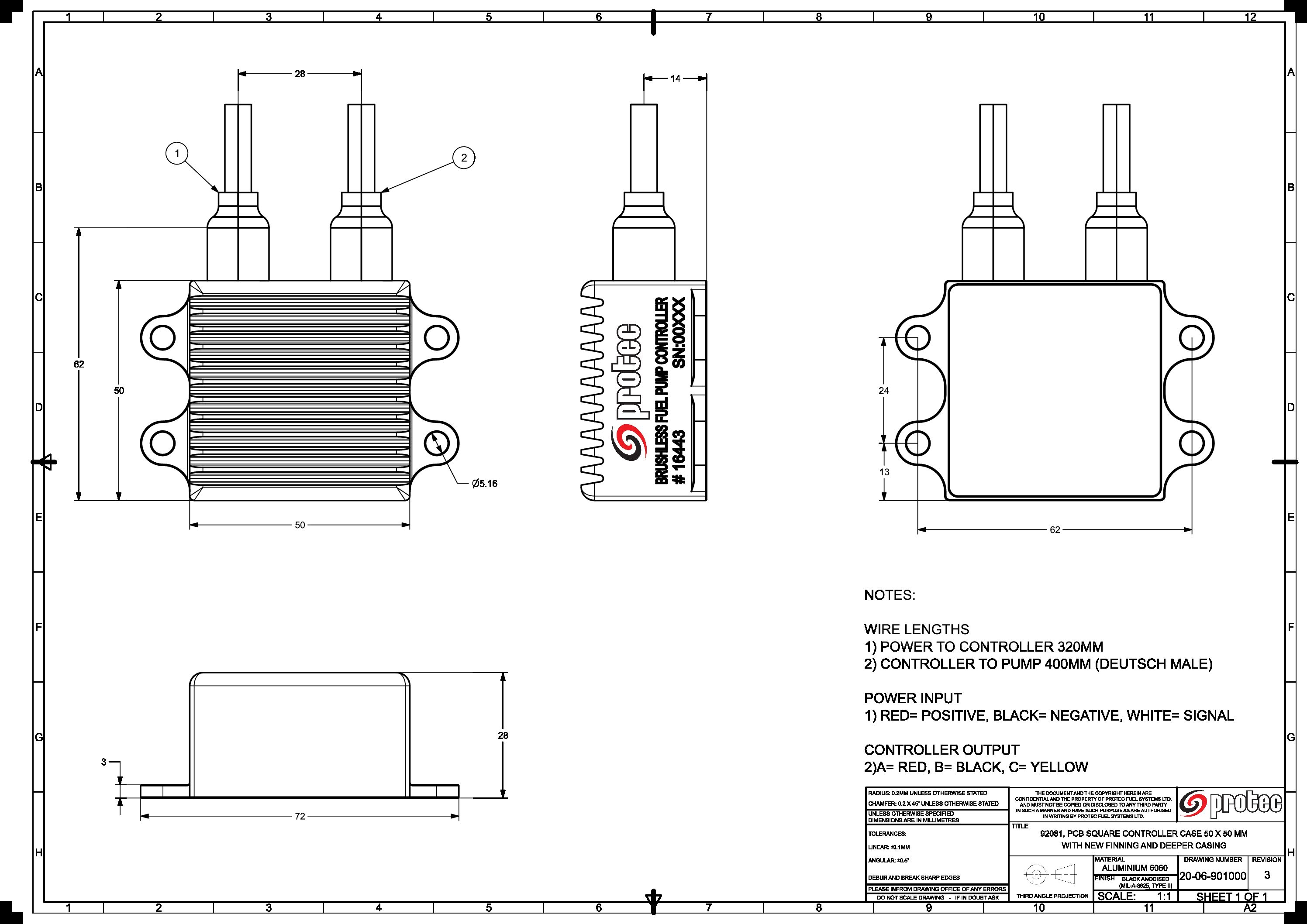

|Terminal Post||Sealed Fly Lead (see Drawing for Lengths)|
|Min Voltage Input||8v|
|Max Voltage Input||16v|
This externally mounted Electronic Fuel Pump Controller operates DC Brushless Fuel Pumps. Available in various speed control options with this particular one a PWM signal operated one, this compact system can operate up to 20 Amps and 16 volts. This controller is ONLY compatible with DC Brushless based pumps and is NOT compatible with standard brush style pumps nor DC Brushless Fuel Pumps that have integrated controllers.

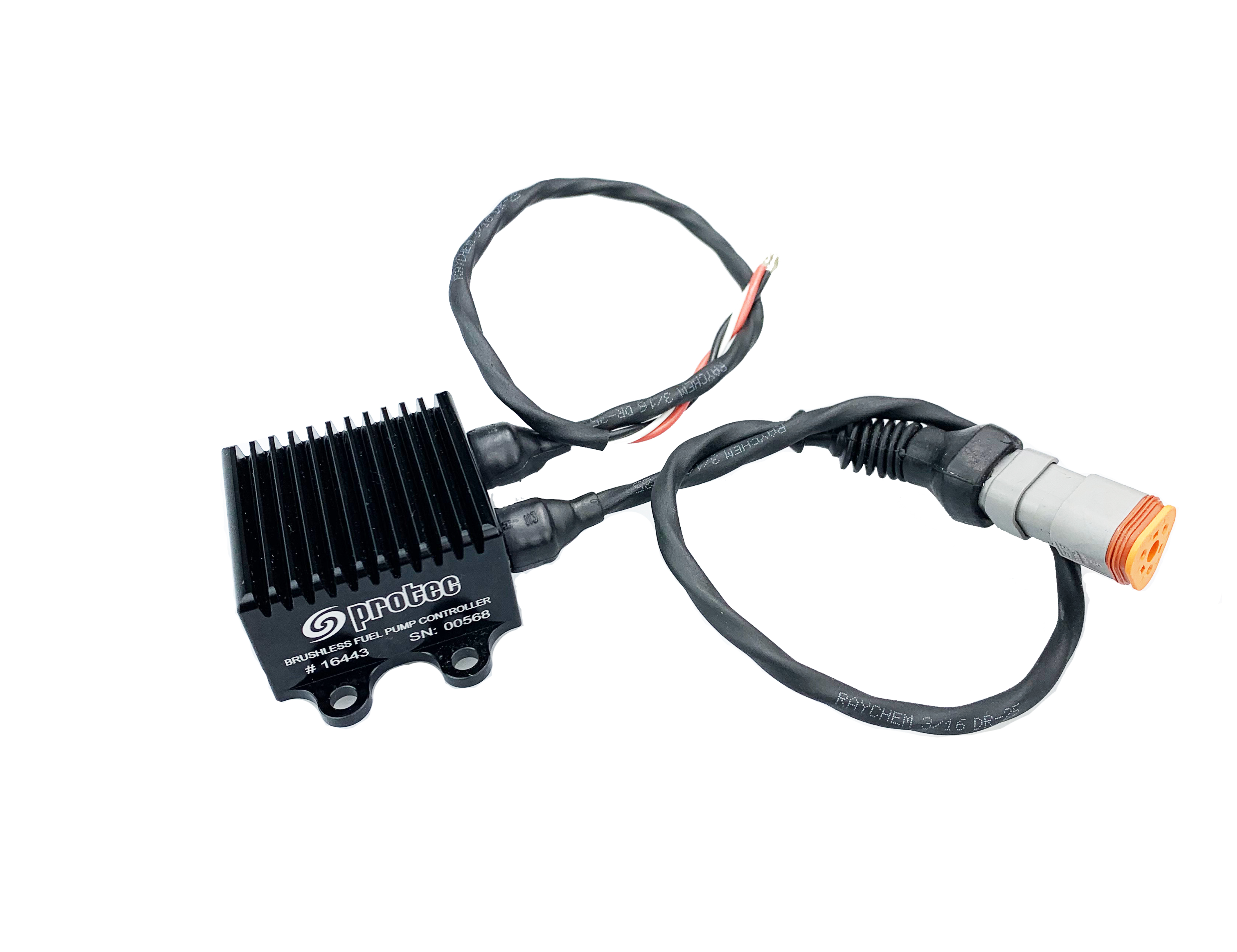

Deutsch DT06-3S fitted to fly lead 2 with mating connector also supplied.
Ensure fuel is always clean and filtered.
Ensure all fittings are tight before use.
Check filter and replace if required.
