90035 – Anti Surge Kit

Product Code: 90035




Name Value
Height 200mm
Width 100mm
Length 100mm
Capacity 1.5 ltr
Fittings 3x AN-6, 1x AN-8
Material Aluminium

All dimensions are approximate. Contact us if you need critical information.

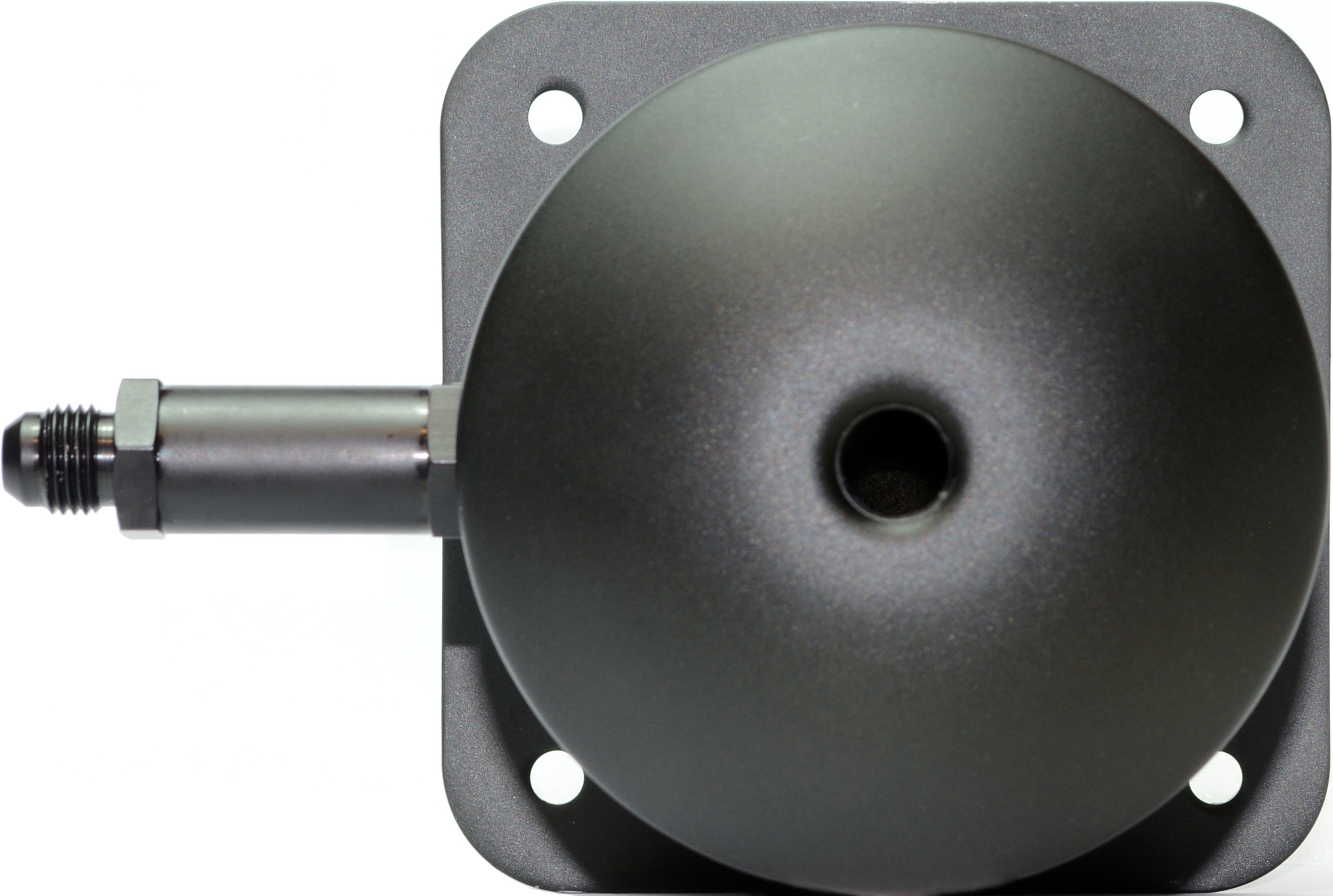

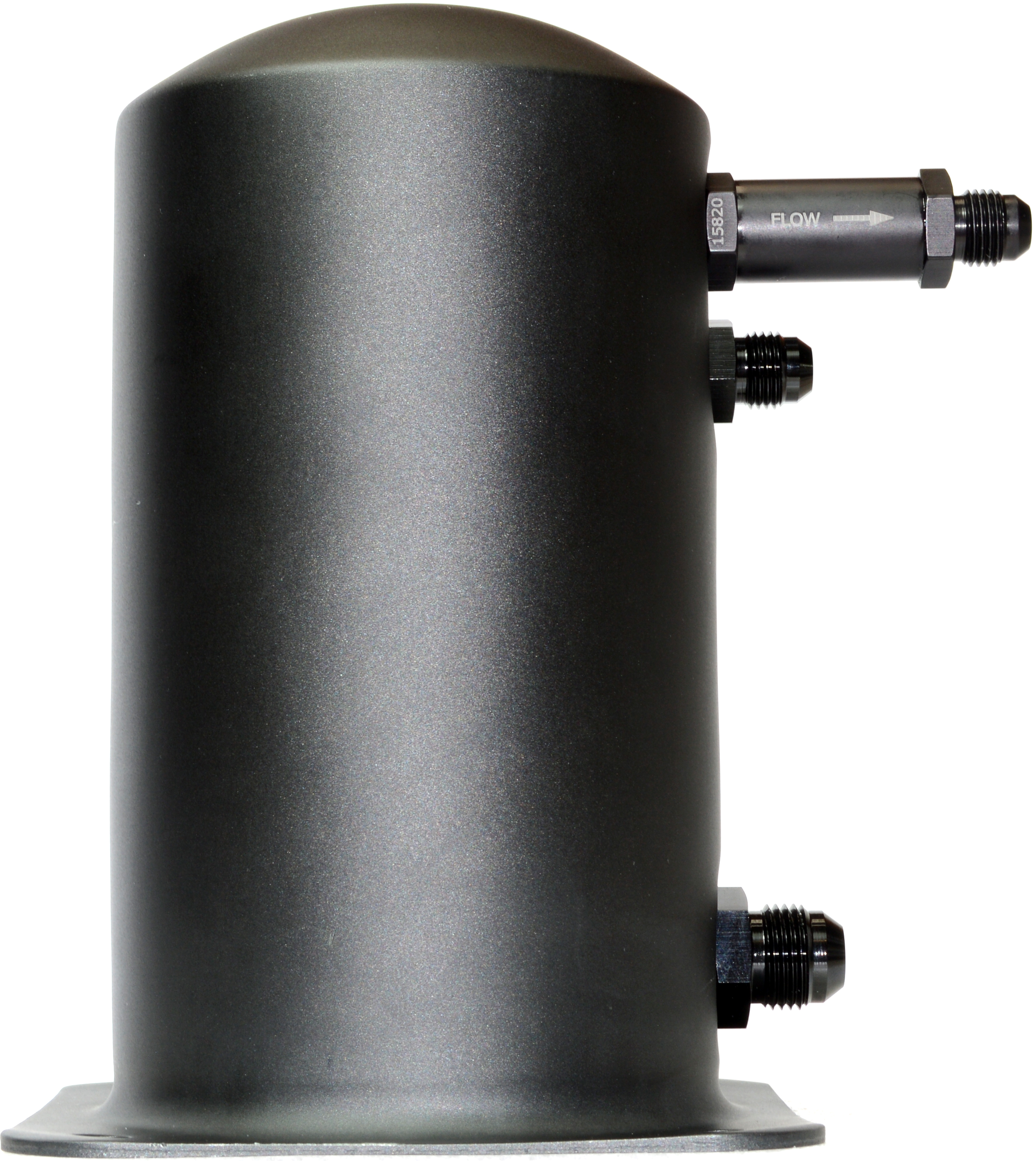

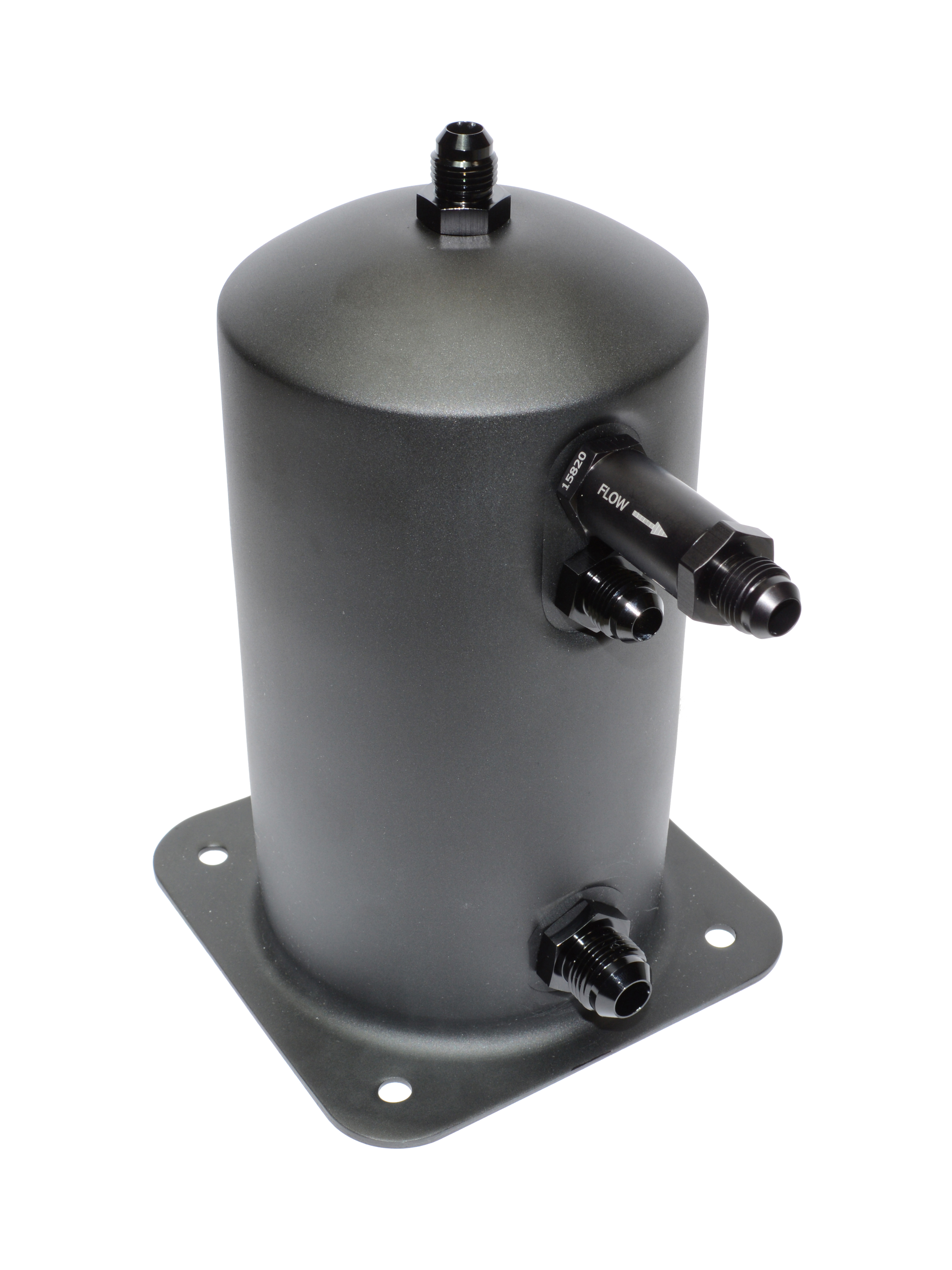

The Protec Anti Surge Kit eliminates fuel surge and reduces the risk of cavitation in the primary pump, The bypass valve controls the pressure inside the pot, any excess fuel is returned back to the main fuel tank. Supplied with pump kit (11834 or 11846) and collector pot(90035) Compatible with all fuel types including ethanol. The Following Options are Available:- Collector Pot – 1 1/2ltr, 3xAN-6, 1x AN-8, 100mm dia x 200mm. Collector Pot – Including 3 psi Bypass Valve

Application Hints

Ensure fuel is always clean and filtered.

Check filter replace as required.

Compatible with all types of fuels.
