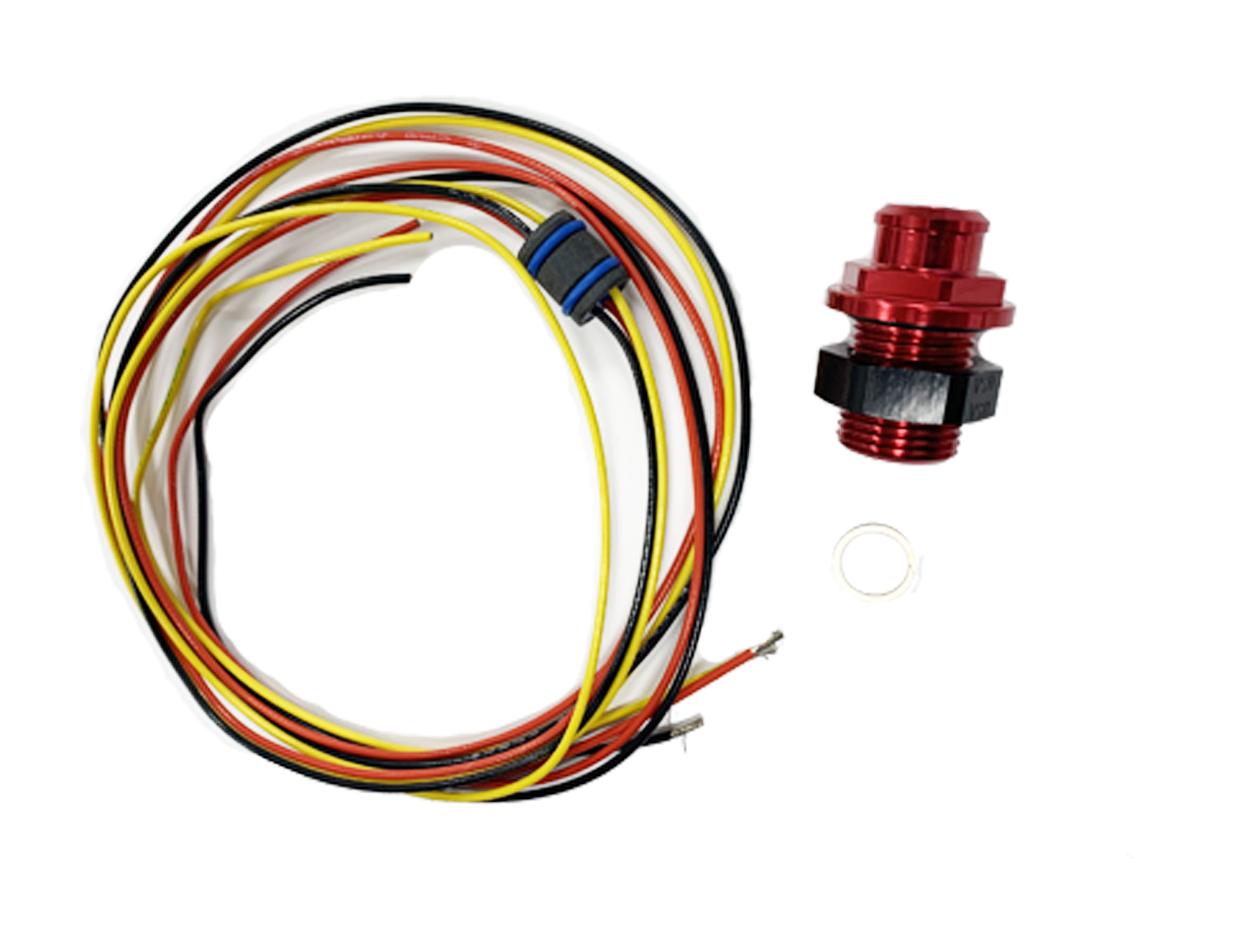

90053 – Electrical Connector, 3 way Hermetic seal, pass through,2ft x 2ft, 14 gauge Tefzol Wire,AN-8 Bulkhead including Sealing Washers and O-Ring

Product Code: 90053

Cost

£130.60

Specification

Name Value
Mating pin diameter
Connector system wire to wire
Number of positions 3
Centre line (pitch)
Sealable Yes
Operating Voltage (VDC) 630
Operating temperature range -20 to 125°C
Degree of protection Full Hermetic Seal
Pump
Wire 14 Gauge
Wire Length 2ft x 2ft
Weight
Length
Width
Height

Description

AN8 Male bulkhead adaptor which houses a fully hermetically sealed electrical feed thru. This is a perfect adaptor to stop any fuel escaping your fuel cell through the wires by wicking up the inside of the external Insulated sheathing.

Application Hints

Ensure electrical connections are all insulated properly.

Ensure all connections are tight.

Ensure terminals are the correct way round.
