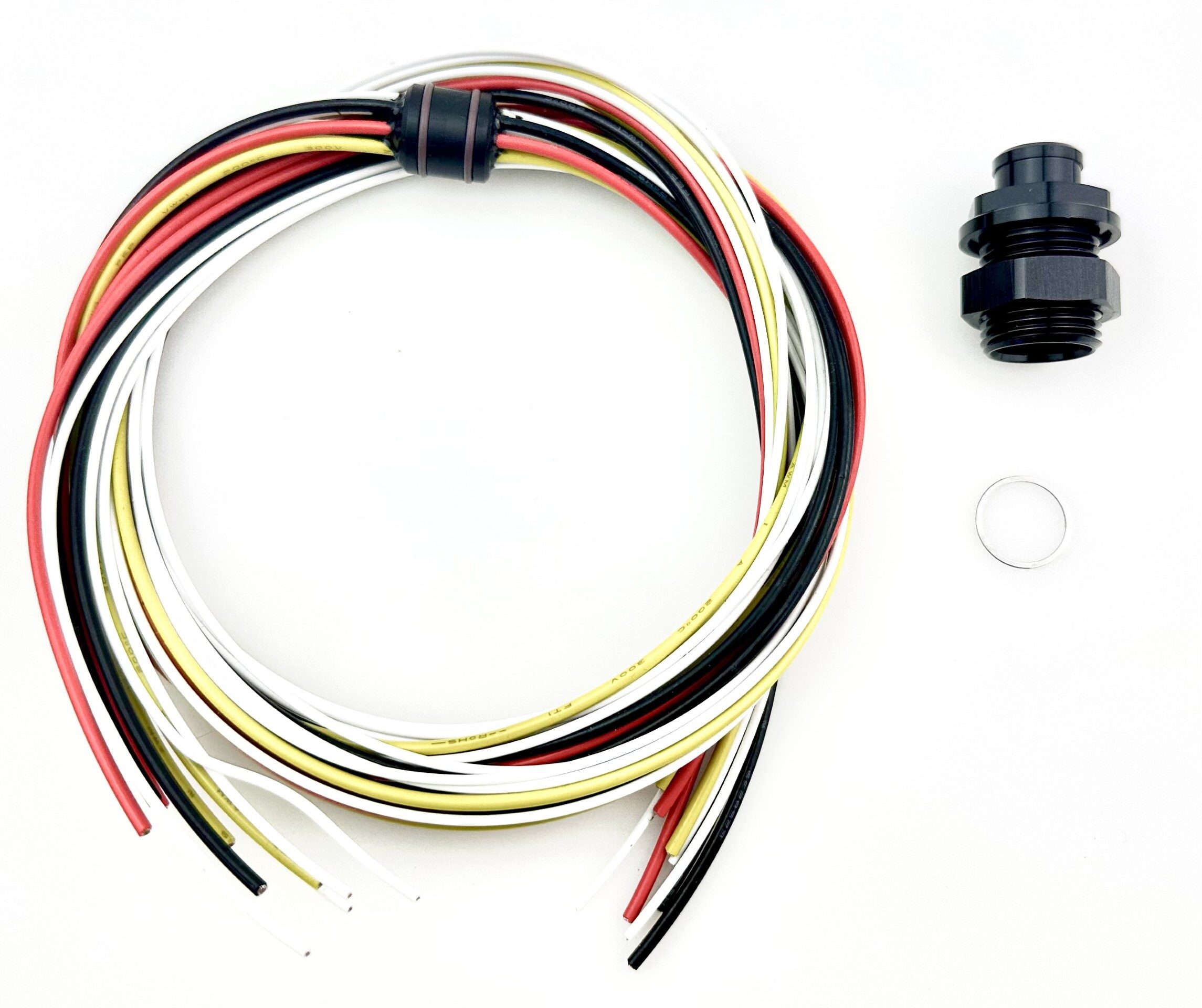

90057 – Electrical Connector, 10 way Hermetic seal, pass through,2ft x 2ft, 6 x 14 gauge Tefzol Wire, 4 x 18 gauge wire, AN-10 Bulkhead including Sealing Washers and O-Ring
Product Code: 90057
£173.17
Specification
| Name | Value |
|---|---|
| Mating pin diameter | |
| Connector system | wire to wire |
| Number of positions | 10 |
| Centre line (pitch) | |
| Sealable | Yes |
| Operating Voltage (VDC) | |
| Operating temperature range | -20 to 125°C |
| Degree of protection | Full Hermetic Seal |
| Pump | |
| Wire | 6 x 14 Gauge, 4 x 18 Gauge |
| Wire Length | 2ft x 2ft |
| Weight | |
| Length | |
| Width | |
| Height |
Description
AN10 Male bulkhead adaptor which houses a fully hermetically sealed electrical feed thru. This is a perfect adaptor to stop any fuel escaping your fuel cell through the wires by wicking up the inside of the external Insulated sheathing.
90057 datasheet 312.27 KB
Application Hints
Ensure electrical connections are all insulated properly.
Ensure all connections are tight.
Ensure terminals are the correct way round.
