90067 – Billet Pump Mount Double O’ring 63 mm ID

Product Code: 90067

Cost

£111.65

Specification

Name Value
Weight 197 grams
Materials Aluminium 6082
Fitment 63mm ID
Finish Electro-less Nickel Coated

All dimensions are approximate. Contact us if you need critical information.

Description

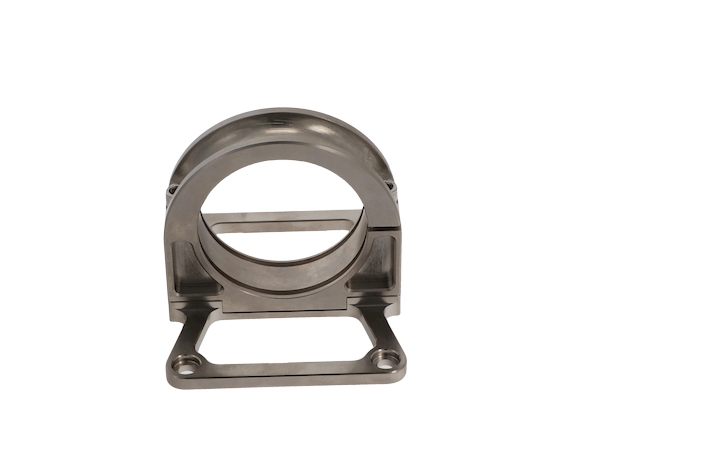

Billet aluminium fuel pump or fuel filter bracket, features twin o rings to dampen vibration. When ordered the frame allows the bracket to be easily removed leaving the frame bolted to the vehicle for less hassle. Both Mount and Frame are Electro-Less Nickel Coated. Ladder frame (90085), Two Stainless Steel M6 X 45mm Hex socket cap screw Din 912 A4 ST/ST, M6 Schnorr washers and two 63mm x 3mm o rings are included in the price.

Application Hints

Use o ring grease when inserting fuel pump or fuel filter.

Make sure all bolts are tightened before use.

Professional installation is highly recommended.
