90070 – Dual Billet Pump Mount Double O’ring 63mm/ 50mm

Product Code: 90070




Name Value
Weight 266 grams
Materials Aluminium 6082
Fitment 63mm/50mm ID
Finish Electro-less Nickel Coated

All dimensions are approximate. Contact us if you need critical information.

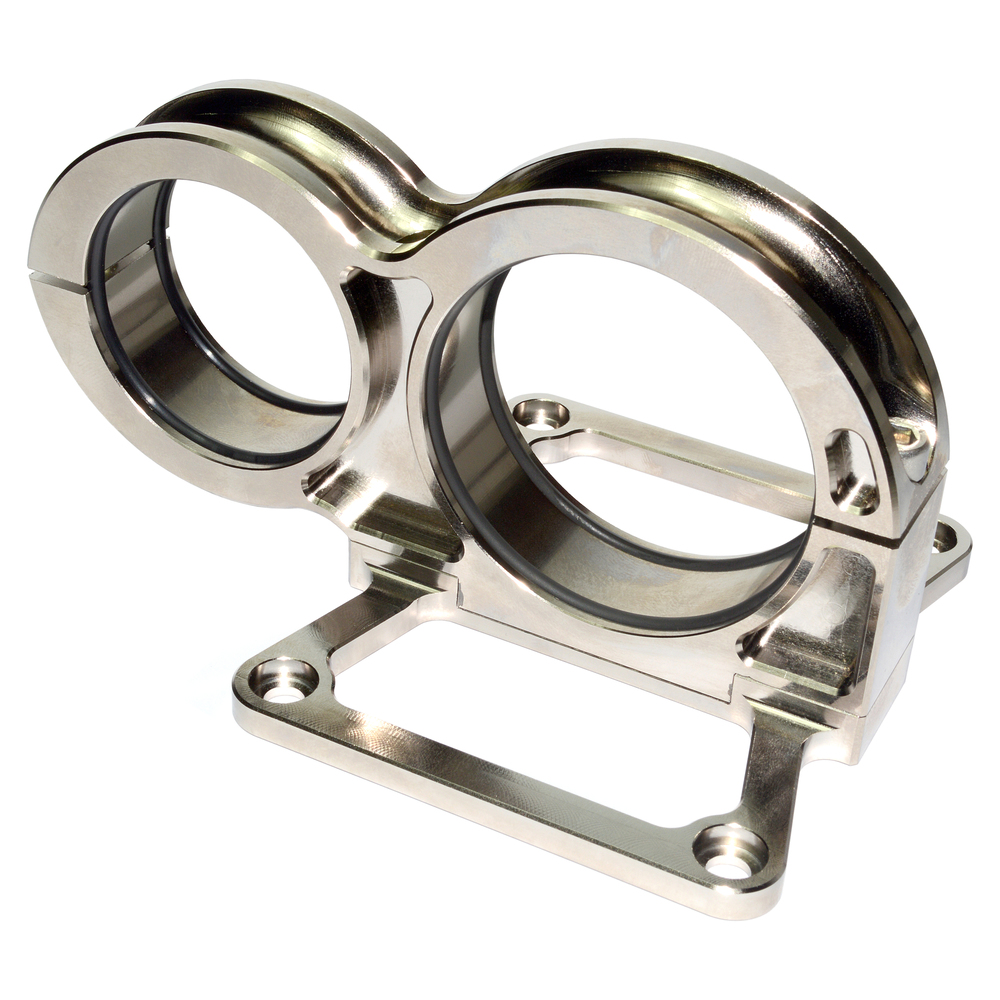

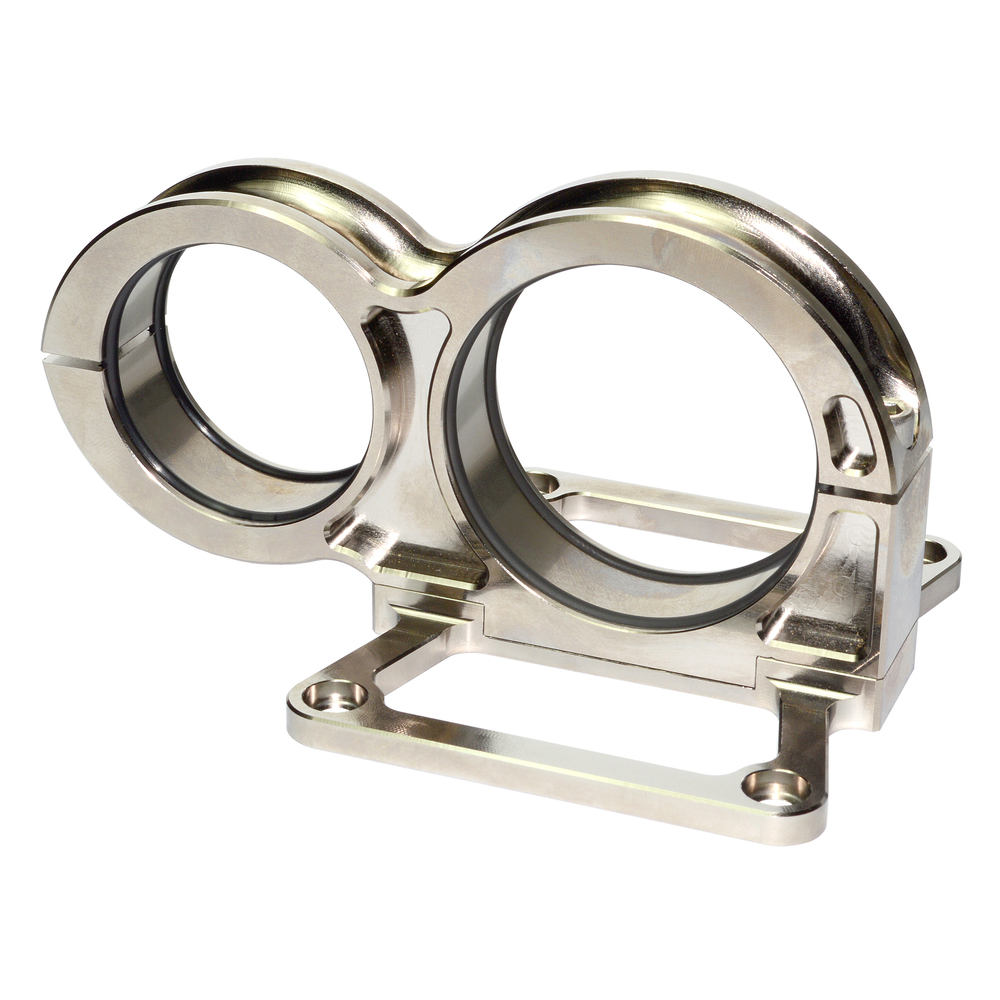

Billet aluminium fuel pump or fuel filter bracket, features twin o rings to dampen vibration. When ordered the frame allows the bracket to be easily removed leaving the frame bolted to the vehicle for less hassle. Both Mount and Frame are Electro-Less Nickel Coated. Ladder frame (90085), Two Stainless Steel M6 X 45mm Hex socket cap screw Din 912 A4 ST/ST, M6 Schnorr washers, two 63mm x 3mm and 50mm x 3mm o rings are included in the price.

Application Hints

Use o ring grease when inserting fuel pump or fuel filter.

Make sure all bolts are tightened before use.

Professional installation is highly recommended.
