Fuel Surge Tank With Brushless Fuel Pump

Product Code:

Cost

Clear

Specification

Name Value
Flow 200 - 500 Ltr/hr @5Bar
Current Draw
Pressure 2-10 psi Internal Pot Pressure
Inlet Fitting 9/16 - 18 UNF (AN6)
Outlet Fitting 3/4 - 16 UNF (AN8)
Impeller Design Helical screw
Weight

Description

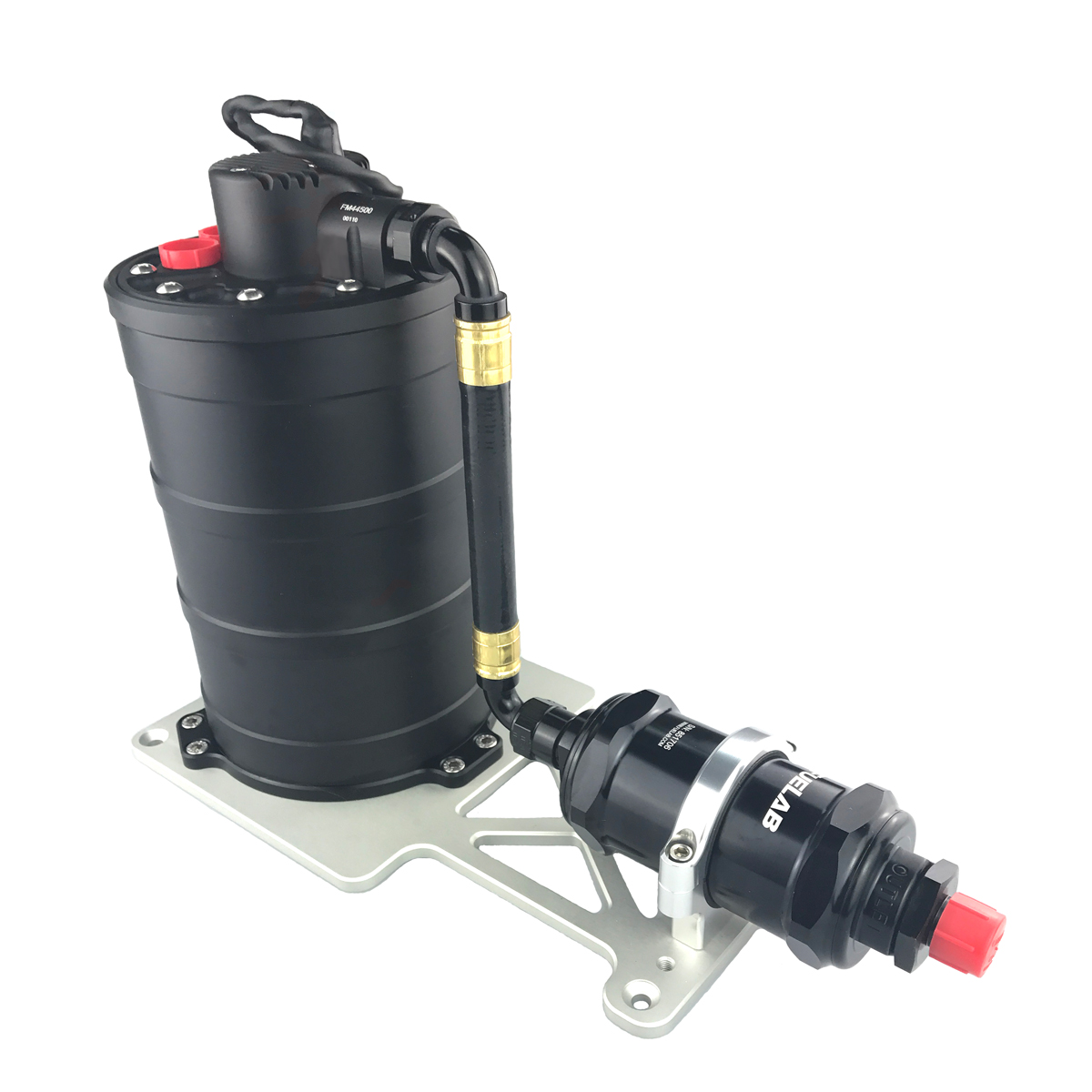

This Fuel Surge Tank has been designed to be light weight but also perform in some of the most demanding applications. Inside the Cobra brushless fuel pump has been engineered to provide precise fuel flow. It is Suitable for use with Ethanol, diesel and petrol (gasoline) the Cobra pump is able to deliver fuel at higher pressures while using less amps. The Cobra fuel pump is lighter than any comparable fuel pump and features custom built brushless motor with an ultra efficient pump mechanism which provides unrivalled performance. Each Cobra fuel pump is engineered to provide optimised flow and selecting the correct Cobra for the flow you need will make sure this fuel pump is the most efficient you have ever used. We also offer an upgrade accessory kit for both pots containing: Floor mount bracket, Hardware, XRP Pro Plus hose assembly and 90 degree high flow fitting.

Application Hints

Ensure fuel is always clean and filtered.

Ensure all fittings are tight before use.

Check filter and replace if required.
